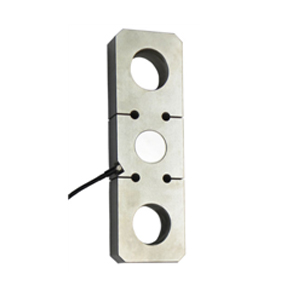

AB-1 Load cell

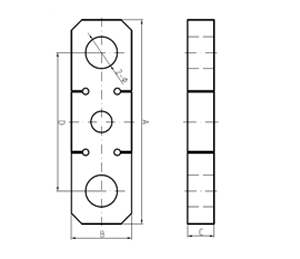

Dimensions:
|
CAP（t） |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
2-Φ(mm) |
|
5 |
190 |
55 |
30 |
137 |
27 |
|
10 |
245 |
70 |
36 |
168 |
41 |
|
20 |
312 |
94 |
45 |
206 |
54 |
|
30 |
370 |
114 |
50 |
246 |
60 |
|
50 |
460 |
140 |
60 |
309 |
73 |
|
100 |
580 |
180 |
80 |
389 |
99 |
|
150 |
690 |
220 |
90 |
456 |
112 |
|
200 |
800 |
250 |
100 |
534 |
134 |
● Equivalent to OIML R60 C3 regulations up to 3000d for scales class III
● Protection to IP66
Specifications
|
Output sensitivity |
mV/V |
2.0 | ||
|
Nonlinearity |
%FS |
≤0.03 | ||
|
Hysteresis |
%FS |
≤0.03 | ||
|
Repeatability |
%FS |
≤0.02 | ||
|
Zero balance |
%FS |
≤1.00 | ||
|
Creep （in 30min） |
%FS/30min |
≤0.02 | ||
|
Zero Temp.coefficient |
%FS/10℃ |
≤0.04 | ||
|
Rated output Temp.coefficient |
%FS/10℃ |
≤0.02 | ||
|
Input resistance |
Ω |
385±10 | ||
|
Output resistance |
Ω |
350±3 | ||
|
Insulation resistance |
MΩ |
≥5000 | ||
|
Safe overload |
%FS |
150 | ||
|
Compensated Temp.range |
℃ |
-10～+40 | ||
|
Recommended Supply voltage |
V |
5～15 | ||
|
4-Core shield cable 3 m |
Input |
+： Red |
-：Black | |
|
Output |
+：Green |
-：White | ||
|
Shield |
Yellow or Bare | |||
