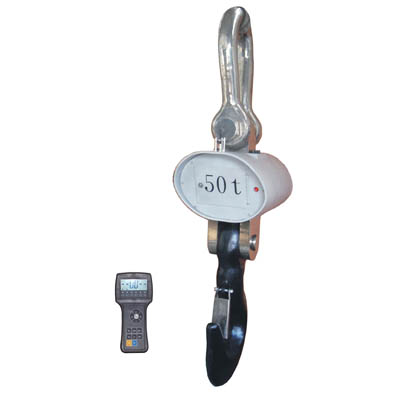

OCS-AZW2 Wireless Crane Scale
●Seamless steel pipe extruded for maximum protection.
● Indicator Adopts ∑-Δ A/D conversion technology.
● Weighing data save protection in case of power off.
● Battery charger with several protection modes to extend life of rechargeable battery.
● Standard RS232 communication interface(optional).
● Portable design, indicator packed in portable carry case, easy to operate outdoor.
● Gathering up to data records of 99 weighings, records can be sorted, searched .
● Power saving mode, indicator will turn off automatically after 30minutes with no operation.
●With 32 channels optional, so 32 crane scales can operated independently in the same airplace without interface.
|
Accuracy Standard |
According to OIML class III |
|
Display |
LCD with backlight |
|
Wireless Distance |
Up to 200m without obstacle |
|
Filtering |
Low, Medium or High selectable |
|
Resulation |
2000 to 3000 divisions standard(up to 15,000 available) |
|
Zero Range |
Auto/Manual setting, from 4% to 100%. |
|
Tare Range |
100% F.S. |
|
Overload Indication |
100% F.S. + 9e |
|
Max. Safety Load |
125% F.S. |
|
Ultimate Load |
400% F.S. |
|
Scale Battery Type |
DC 6V/4Ah rechargeable Ni-H battery |
|
Indicator Battery |
4.8V/2.8Ah rechargeable Ni-H battery |
|
Battery charger |
Input: AC100-240V 50/60Hz Output: 850mA |
|
Operating Temperature Range |
- 20℃ ~ + 50℃ |
|
Operating Humidity |
≤85% RH under 20℃ |
|
Radio Frequency |
433MHz |
|

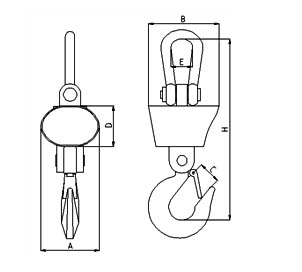

MODEL |
Cap.(kg) |
Resolution(kg) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
H(mm) |
N.W(kg) |
G.W.(kg) |
|
OCS-AZW6-30 |
30000 |
10 |
380 |
460 |
110 |
280 |
160 |
1150 |
165 |
180 |
|
OCS-AZW6-50 |
50000 |
20 |
490 |
660 |
160 |
340 |
230 |
1700 |
480 |
510 |
|
MODEL |
Cap.(kg) |
Resolution(kg) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
H(mm) |
N.W(kg) |
G.W.(kg) |
|
OCS-AZW6-30 |
30000 |
10 |
380 |
460 |
110 |
280 |
160 |
1150 |
165 |
180 |
|
OCS-AZW6-50 |
50000 |
20 |
490 |
660 |
160 |
340 |
230 |
1700 |
480 |
510 |
