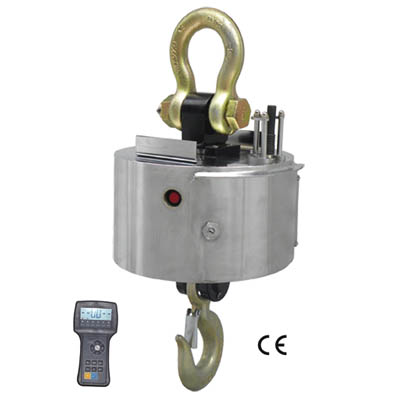

OCS-AW2 Wireless Crane Scale
● Seamless steel pipe enclosure for maximum protection.
● Manu operation mode, calibration, saving, searching, peak hold, easy to operate.
● Indicator Adopts ∑-Δ A/D conversion technology.
● Weighing data save protection in case of power off.
● Battery charger with several protection modes to extend life of rechargeable battery.
● Standard RS232 communication interface(optional).
● Portable design, indicator packed in portable carry case, easy to operate outdoor.
● Gathering up to data records of 99 weighings, records can be sorted, searched .
● Power saving mode, indicator will turn off automatically after 30minutes with no operation.
●With 32 channels optional, so 32 crane scales can operated independently in the same airplace without interface.
|
Accuracy Standard |
According to OIML class III |
|
Display |
LCD with backlight |
|
Wireless Distance |
Up to 200m without obstacle |
|
Filtering |
Low, Medium or High selectable |
|
Resulation |
2000 to 3000 divisions standard(up to 15,000 available) |
|
Zero Range |
Auto/Manual setting, from 4% to 100%. |
|
Tare Range |
100% F.S. |
|
Overload Indication |
100% F.S. + 9e |
|
Max. Safety Load |
125% F.S. |
|
Ultimate Load |
400% F.S. |
|
Scale Battery Type |
DC 6V/4Ah rechargeable Ni-H battery |
|
Indicator Battery |
4.8V/2.8Ah rechargeable Ni-H battery |
|
Battery charger |
Input: AC100-240V 50/60Hz Output: 850mA |
|
Operating Temperature Range |
- 20℃ ~ + 50℃ |
|
Operating Humidity |
≤85% RH under 20℃ |
|
Radio Frequency |
433MHz |
|

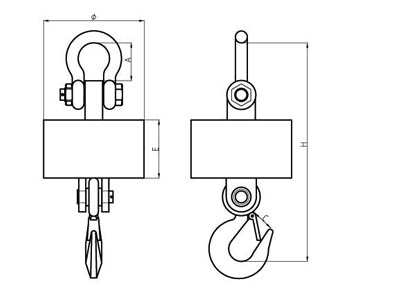

MODEL |
Cap.(kg) |
Resolution(kg) |
A(mm) |
C(mm) |
E(mm) |
H(mm) |
Φ(mm) |
G.W.(kg) |
|
OCS-AW2-1 |
1000 |
0.5 |
67 |
35 |
160 |
450 |
270 |
32 |
|
OCS-AW2-2 |
2000 |
1 |
67 |
35 |
160 |
450 |
270 |
32 |
|
OCS-AW2-3 |
3000 |
1 |
95 |
45 |
160 |
510 |
270 |
35 |
|
OCS-AW2-5 |
5000 |
2 |
113 |
55 |
185 |
625 |
325 |
47 |
|
OCS-AW2-10 |
10000 |
5 |
122 |
65 |
185 |
710 |
325 |
60 |
|
OCS-AW2-15 |
15000 |
5 |
144 |
70 |
185 |
835 |
325 |
89 |
|
OCS-AW2-20 |
20000 |
10 |
166 |
85 |
185 |
900 |
325 |
92 |
|
OCS-AW2-30 |
30000 |
10 |
285 |
100 |
220 |
1140 |
375 |
172 |
|
OCS-AW2-50 |
50000 |
20 |
360 |
160 |
280 |
1680 |
450 |
515 |
|
MODEL |
Cap.(kg) |
Resolution(kg) |
A(mm) |
C(mm) |
E(mm) |
H(mm) |
Φ(mm) |
G.W.(kg) |
|
OCS-AW2-1 |
1000 |
0.5 |
67 |
35 |
160 |
450 |
270 |
32 |
|
OCS-AW2-2 |
2000 |
1 |
67 |
35 |
160 |
450 |
270 |
32 |
|
OCS-AW2-3 |
3000 |
1 |
95 |
45 |
160 |
510 |
270 |
35 |
|
OCS-AW2-5 |
5000 |
2 |
113 |
55 |
185 |
625 |
325 |
47 |
|
OCS-AW2-10 |
10000 |
5 |
122 |
65 |
185 |
710 |
325 |
60 |
|
OCS-AW2-15 |
15000 |
5 |
144 |
70 |
185 |
835 |
325 |
89 |
|
OCS-AW2-20 |
20000 |
10 |
166 |
85 |
185 |
900 |
325 |
92 |
|
OCS-AW2-30 |
30000 |
10 |
285 |
100 |
220 |
1140 |
375 |
172 |
|
OCS-AW2-50 |
50000 |
20 |
360 |
160 |
280 |
1680 |
450 |
515 |
