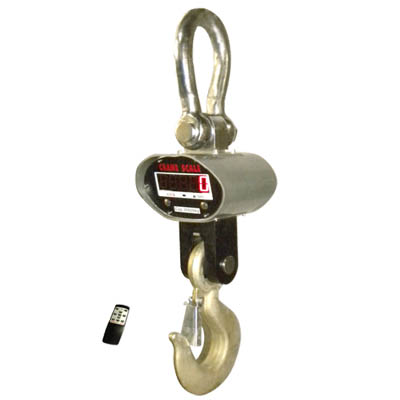

OCS-AZL Digital Crane Scale
◆
Enclosure:
Seamless steel pipe extruded for maximum protection.
◆ Multi-weighing units:
Kg, lb are selectable, kg are default unit.
◆Multi-function operation:
Tare, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operated through infrared remote controller.
◆User-friendly design:
Large red 5 digit LED display (digit height 45mm), Battery Operated with low battery indication, Auto turn off , power-saving function.
◆Gravity regulation:
The acceleration of gravity can be regulated through remote controller according to different places value.
◆Multi options:
RS-232-continuous or on demand data output, user-selectable.
Wireless big screen 3″, 5″, wireless indicator 18, 28, 38, 58 can match with the scale, user-selectable.
|
Accuracy Standard |
According to OIML class III |
|
Display |
45mm (1.8″) 5digits LED |
|
Filtering |
Low, Medium or High selectable |
|
Units |
Kilograms or Pounds selectable |
|
Resulation |
2000 to 3000 divisions standard(up to 15,000 available) |
|
Zero Range |
4% F.S. |
|
Tare Range |
100% F.S. |
|
Overload Indication |
100% F.S. + 9e |
|
Max. Safety Load |
125% F.S. |
|
Ultimate Load |
400% F.S. |
|
Battery Type |
Fully sealed Lead-Acid battery, 6V/7Ah |
|
Battery Life |
≥100 hours |
|
Adapter |
DC 9V/1000mA |
|
Operating Humidity |
≤85% RH under 20℃ |
|
Remote Controller Distance |
Max. 15m |
|
Battery of Remote Controller |
7# battery, 1.5Vⅹ2 |
|
Acceleration of Gravity |
Can be regulated, the default value is 9.793 |
|

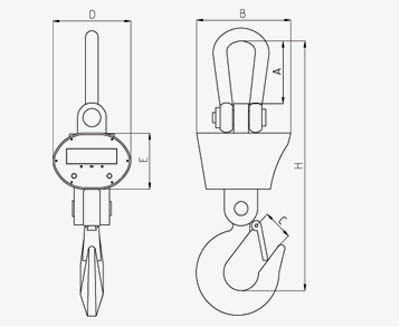

MODEL |
Cap.(kg) |
Resolution(kg) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
H(mm) |
N.W(kg) |
G.W.(kg) |
|
OCS-AZL-30 |
30000 |
10 |
260 |
340 |
100 |
300 |
200 |
1055 |
104 |
115 |
|
MODEL |
Cap.(kg) |
Resolution(kg) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
H(mm) |
N.W(kg) |
G.W.(kg) |
|
OCS-AZL-30 |
30000 |
10 |
260 |
340 |
100 |
300 |
200 |
1055 |
104 |
115 |
