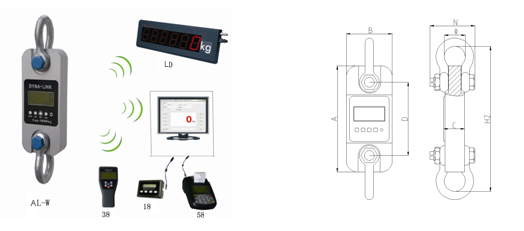

DIMENSIONS(Dimensions shown are nominal and subject to tolerances)
|
MODEL |
CAP |
Div |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
φ(mm) |
H(mm) |
Material |
|
AL-WLS-1 |
1t |
0.5kg |
245 |
112 |
37 |
190 |
43 |
335 |
Aluminum |
|
AL-WLS-2 |
2t |
1kg |
260 |
123 |
37 |
195 |
51 |
365 |
Aluminum |
|
AL-WLS-3 |
3t |
1kg |
260 |
123 |
37 |
195 |
51 |
365 |
Aluminum |
|
AL-WLS-5 |
5t |
2kg |
285 |
123 |
57 |
210 |
58 |
405 |
Aluminum |
|
AL-WLS-10 |
10t |
5kg |
320 |
120 |
57 |
230 |
92 |
535 |
Alloy Steel |
|
AL-WLS-20 |
20t |
10kg |
375 |
128 |
74 |
260 |
127 |
660 |
Alloy Steel |
|
AL-WLS-30 |
30 |
10kg |
420 |
138 |
82 |
280 |
146 |
740 |
Alloy Steel |
|
AL-WLS-50 |
50t |
20kg |
465 |
150 |
104 |
305 |
184 |
930 |
Alloy Steel |
|
AL-WLS-100 |
100t |
50kg |
570 |
190 |
132 |
366 |
229 |
1230 |
Alloy Steel |
|
AL-WLS-200 |
200t |
100kg |
720 |
265 |
183 |
440 |
280 |
1362 |
Alloy Steel |
WEIGHTS
|
Model |
AL-WLS -1 |
AL-WLS -2 |
AL-WLS -3 |
AL-WLS -5 |
AL-WLS -10 |
AL-WLS -20 |
AL-WLS -30 |
AL-WLS -50 |
AL-WLS -100 |
AL-WLS -200 | |
|
Unit Weight(kg) |
1.6 |
2.1 |
2.1 |
2.7 |
10.4 |
17.8 |
25 |
39 |
81 |
210 | |
|
Weight with shackles(kg) |
3.1 |
4.6 |
4.6 |
6.3 |
24.8 |
48.6 |
73 |
128 |
321 |
776 | |
Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
Units: Available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)
Battery: 3pcs AA size alkaline batteries, 50 hours radio continuous using.
Body Display: 25mm (1″) 5digits LCD with backlight for easy distant viewing.
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Ultimate Load: 400% of capacity.
Operation temperature: -20℃ to 50℃
Gravity regulation: The acceleration of gravity can be regulated through wireless indicator according to different places value.
Functions: Zero, tare, Low battery warnings, peak hold, Two user programmable Set-Point can be used for safety and warning applications or for limit weighing. User calibration.
