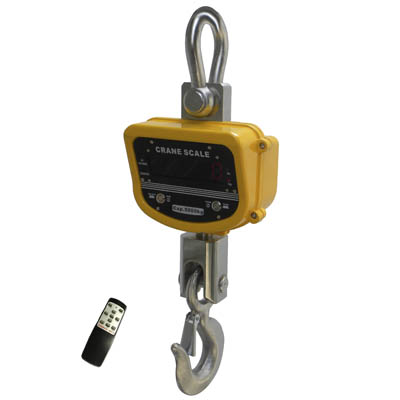

OCS-AX Digital Crane Scale
◆ Rotating hook: 360°safe rotated hook, convenient to use
◆ Enclosure: NEMA 12/IP54 powder coated Foundry Cast Aluminum
◆ Multi-weighing units: Kg, lb are selectable, kg are default unit.
◆ Multi-function operation:
Tare, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operated through infrared remote controller.
◆ User-friendly design:
Large red 5 digit LED display-digit height 30mm, Battery Operated with low battery indication, Automatic turn off , power-saving function.
◆ Gravity regulation:
The acceleration of gravity can be regulated through remote controller according to different places value.
◆ Multi options:
RS-232-continuous or on demand data output, user-selectable.
Wireless big screen 3″, 5″, wireless indicator 18, 28, 38, 58 can match with the scale, user-selectable.
|
Accuracy Standard |
According to OIML class III |
|
Display |
30mm (1.2″) 5digits LED |
|
Filtering |
Low, Medium or High selectable |
|
Units |
Kilograms or Pounds selectable |
|
Resulation |
2000 to 3000 divisions standard(up to 15,000 available) |
|
Zero Range |
4% F.S. |
|
Tare Range |
100% F.S. |
|
Overload Indication |
100% F.S. + 9e |
|
Max. Safety Load |
125% F.S. |
|
Ultimate Load |
400% F.S. |
|
Battery Type |
Fully sealed Lead-Acid battery, 6V/7Ah |
|
Battery Life |
≥70 hours |
|
Adapter |
DC 9V/1000mA |
|
Operating Temperature Range |
- 20℃ ~ + 50℃ |
|
Operating Humidity |
≤85% RH under 20℃ |
|
Remote Controller Distance |
Max. 15m |
|
Battery of Remote Controller |
7# battery, 1.5Vⅹ2 |
|
Acceleration of Gravity |
Can be regulated, the default value is 9.793 |
|

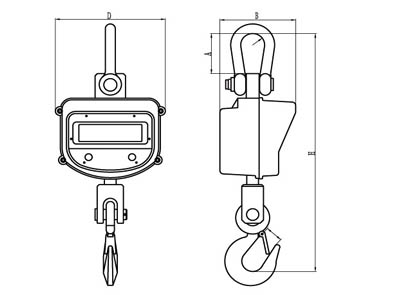

MODEL |
Cap.(kg) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
H(mm) |
R(mm) |
N.W(kg) |
|
OCS-AX-1 |
1000 |
95 |
180 |
28 |
264 |
570 |
27 |
12 |
|
OCS-AX-2 |
2000 |
95 |
180 |
28 |
264 |
570 |
27 |
12 |
|
OCS-AX-3 |
3000 |
95 |
180 |
35 |
264 |
580 |
27 |
13 |
|
OCS-AX-5 |
5000 |
124 |
188 |
40 |
264 |
665 |
39 |
21 |
|
OCS-AX-10 |
10000 |
124 |
206 |
48 |
264 |
745 |
45 |
30 |
|
MODEL |
Cap.(kg) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
H(mm) |
R(mm) |
N.W(kg) |
|
OCS-AX-1 |
1000 |
95 |
180 |
28 |
264 |
570 |
27 |
12 |
|
OCS-AX-2 |
2000 |
95 |
180 |
28 |
264 |
570 |
27 |
12 |
|
OCS-AX-3 |
3000 |
95 |
180 |
35 |
264 |
580 |
27 |
13 |
|
OCS-AX-5 |
5000 |
124 |
188 |
40 |
264 |
665 |
39 |
21 |
|
OCS-AX-10 |
10000 |
124 |
206 |
48 |
264 |
745 |
45 |
30 |
