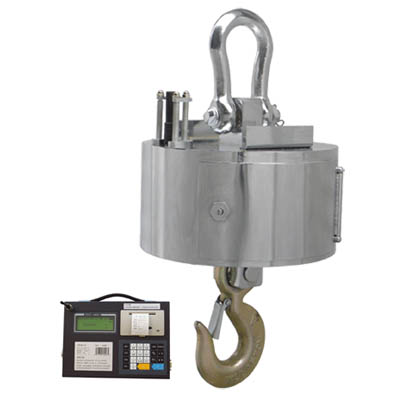

OCS-AWL6 Wireless Crane Scale
● Seamless steel pipe enclosure for maximum protection.
● Manu operation mode, calibration, saving, searching, printing, easy to operate.
● Indicator Adopts ∑-Δ A/D conversion technology.
● Able to setup zero(auto/manual) range, filtering range.
● Weighing data save protection in case of power off.
● Battery charger with several protection modes to extend life of rechargeable battery.
● Standard RS232 communication interface(optional).
● Portable design, indicator packed in portable carry case, easy to operate outdoor.
● Gathering up to data records of 2000 weighings, records can be sorted, searched and printed.
● Power saving mode, indicator will turn off automatically after 30minutes with no operation.
● With 32 channels optional, so 32 crane scales can operated independently in the same airplace without interface.
|
Accuracy Standard |
According to OIML class III |
|
Display |
LCD with dot-Matrix with backlight |
|
Wireless Distance |
Up to 200m without obstacles |
|
Filtering |
Low, Medium or High selectable |
|
Resulation |
2000 to 3000 divisions standard(up to 15,000 available) |
|
Zero Range |
Auto/Manual setting, from 4% to 100%. |
|
Tare Range |
100% F.S. |
|
Overload Indication |
100% F.S. + 9e |
|
Max. Safety Load |
125% F.S. |
|
Ultimate Load |
400% F.S. |
|
Scale Battery Type |
DC 6V/4.5Ah rechargeable Lead-Acid battery |
|
Indicator Battery |
6V/7Ah rechargeable Lead-Acid battery |
|
Battery charger |
Input: AC100-240V 50/60Hz Output: 850mA |
|
Printer |
Standard parallel print interface(EPSON printer) |
|
Operating Temperature Range |
- 20℃ ~ + 50℃ |
|
Operating Humidity |
≤85% RH under 20℃ |
|
Radio Frequency |
433MHz |
|

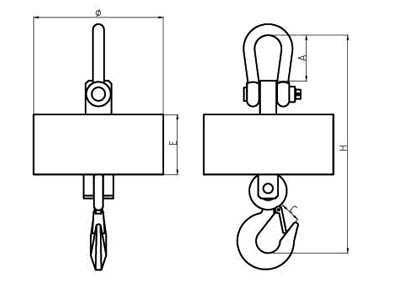

MODEL |
Cap.(kg) |
Resolution(kg) |
A(mm) |
C(mm) |
E(mm) |
H(mm) |
Φ(mm) |
G.W.(kg) |
|
OCS-AWL6-1 |
1000 |
0.5 |
95 |
33 |
145 |
445 |
270 |
33 |
|
OCS-AWL6-2 |
2000 |
1 |
95 |
33 |
145 |
445 |
270 |
33 |
|
OCS-AWL6-3 |
3000 |
1 |
95 |
40 |
145 |
445 |
270 |
34 |
|
OCS-AWL6-5 |
5000 |
2 |
120 |
50 |
155 |
485 |
298 |
45 |
|
OCS-AWL6-10 |
10000 |
5 |
124 |
60 |
170 |
655 |
325 |
55 |
|
OCS-AWL6-15 |
15000 |
5 |
225 |
70 |
170 |
855 |
325 |
75 |
|
OCS-AWL6-20 |
20000 |
10 |
225 |
85 |
170 |
920 |
325 |
85 |
|
OCS-AWL6-30 |
30000 |
10 |
260 |
105 |
200 |
1055 |
375 |
125 |
|
MODEL |
Cap.(kg) |
Resolution(kg) |
A(mm) |
C(mm) |
E(mm) |
H(mm) |
Φ(mm) |
G.W.(kg) |
|
OCS-AWL6-1 |
1000 |
0.5 |
95 |
33 |
145 |
445 |
270 |
33 |
|
OCS-AWL6-2 |
2000 |
1 |
95 |
33 |
145 |
445 |
270 |
33 |
|
OCS-AWL6-3 |
3000 |
1 |
95 |
40 |
145 |
445 |
270 |
34 |
|
OCS-AWL6-5 |
5000 |
2 |
120 |
50 |
155 |
485 |
298 |
45 |
|
OCS-AWL6-10 |
10000 |
5 |
124 |
60 |
170 |
655 |
325 |
55 |
|
OCS-AWL6-15 |
15000 |
5 |
225 |
70 |
170 |
855 |
325 |
75 |
|
OCS-AWL6-20 |
20000 |
10 |
225 |
85 |
170 |
920 |
325 |
85 |
|
OCS-AWL6-30 |
30000 |
10 |
260 |
105 |
200 |
1055 |
375 |
125 |
